    Various Mould QTJ4-25 1400pcs/H Manual Block Making Machine

    Ask Lasest Price
    Brand Name : ZHENHENG
    Model Number : QJT4-25 Concrete Block Making Machine
    Certification : SGS, ISO, BV, CE
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 SETS PER MONTH
    Delivery Time : 7-15 WORKING DAYS AFTER CONFRIM ORDER
    • Product Details
    • Company Profile

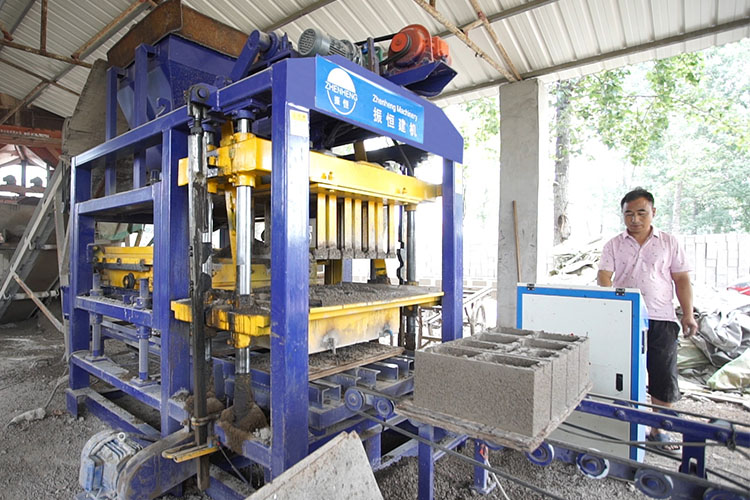

    Various Mould QTJ4-25 1400pcs/H Manual Block Making Machine

    Various Mould QTJ4-25 1400pcs/H Manual Block Making Machine

    Interlock Brick Making Machine​ Description for QTJ4-25 Concrete Block Machine


    QTJ4-25 block making machine can use fly ash, coal slag, coal gangue, ceramsite, river sand, tailings slag, slag, construction waste, and produce various non-burning hollow blocks. Various molds can be designed and replaced according to user requirements to produce different brick types. The body of the machine is made of super-strong type and special welding technology, and imported components are widely used to ensure the stability and reliability of the machine for a long time.

    QTJ4-25 block making machine has a unique structure and adopts a unique feeding and arch breaking mechanism. Multiple rows of mixing forks are installed in the material box. When the material box is sent to the top of the mold box, the mixing fork works to force the mold box to discharge. The cutting is smooth and the cloth is uniform, ensuring the strength of the product, the uniformity of the weight, the design of super excitation force, using the computer to control the flow and pressure of the hydraulic system, achieving vertical synchronous vibration, frequency conversion, and braking to ensure that the product reaches a high level in a short time Strength and high density.

    QTJ4-25 block making machine is not only suitable for the production of concrete blocks, but also for the production of fly ash, slag, slag and other material blocks. With different molds, it can produce various specifications of wall blocks, concrete porous bricks and slope protection bricks. Square tiles, etc.


    Interlock Brick Making Machine​ of QTJ4-25 Block Machine Specification


    Overall dimension5600*2240*2400mm
    Main vibration formplatform vibration
    Vibration frequency3500(r/min)
    Pallet size850*550mm
    Molding cycle25(s)
    Exciting force50kn
    Overall power20.6kw

    Productivity of QTJ4-25 Block Making Machine


    ItemSizeQuantity per moldCycle moldingPer hourPer dayPer year
    Hollow brick390*190*1904/pcs24-26(s)580pcs5800pcs1740000pcs
    Porous block240*115*909/pcs22-25(s)1400pcs14000pcs4200000pcs
    Standard brick240*115*5321/pcs22-25(s)3300pcs33000pcs9900000pcs

    Performance of QTJ4-25 Block Making Machine:


    1. The qtj4-25 concrete block making machine adopts shaking-type independent cloth, which solves the problem of difficult cloth for porous bricks and hollow blocks.

    2. The block making machine of QTJ4-25 model is equipped with a manual hydraulic control valve, which is suitable for initial investment of some customers, and can be upgraded to a machine with dual configuration to avoid repeated investment.

    3. When the products are solid bricks or load-bearing hollow bricks, this QTJ4-25 cement brick making machine can be stacked directly, saving pallet investment and consumption.

    4. The vibration amplitude, vibration frequency and hydraulic pressure of the QTJ4-25 concrete block making machine are reasonably formulated, which not only has high product density, but also ensures that the machine body and the excitation system do not resonate, thus prolonging the life of the machine body.

    5. The QTJ4-25 cement block making machine has reasonable design, stable performance, easy maintenance, one machine for multiple purposes, no need to dry the billet and can be palletized after forming without pallet (3-5 layers high)


    High quality machine structure:
    Steel Q235B, CO2 gas protective welding, the machine structure is strong resistance to vibration.

    Production scope:
    Pavement block, riverside block, revetment block, square block, grassed block and color-face block (layered material feeding) etc.

    Electrical system:
    Adopts imported color touch screen and programmable controller PLC control equipped with data input/output device, control system including the safety logic control and fault diagnosis system
    Convenient -type aviation plug easy install.

    Feeding system:
    360° feeding teeth rotate mixing raw material evenly
    Feeding box adopt double pulleys and pressing spring to prevent from scattering materials.
    Synchronizing gear: Guarantee accurate movement of the mold ,make mould pressing effective.

    Vibration system:
    Simultaneous platform vibrating works with mould pressing produce concrete block in high density efficiently and strength.
    Frequency motor makes the vibration platform high frequency and lower amplitude, so the platform vibration is more stable and less noise.

    Hydraulic system:
    facilitated with imported hydraulic components and seal, high dynamic performance proportional valve, control oil quantity and pressure automatically.
    Water cooling system: ensure the oil temperature lower than 60°, extend the working time of hydraulic station with safety.

    High quality Mould:
    mould is made of manganese steel with high strength
    line cutting chronology adoption ensure the precision of mould shape
    Carburizing heat treatment and underwater welding enhance the strength of steel prolong the mould life.
