    High Automation JZR350 Diesel Concrete Mixer Hydraulic Hopper With Ladders

    Ask Lasest Price
    Brand Name : ZHENHENG
    Model Number : JZR350T Diesel Concrete Mixer
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 30 SET PER MONTH
    Delivery Time : 7-15 WORKING DAYS AFTER CONFIRM ORDER
    • Product Details
    • Company Profile

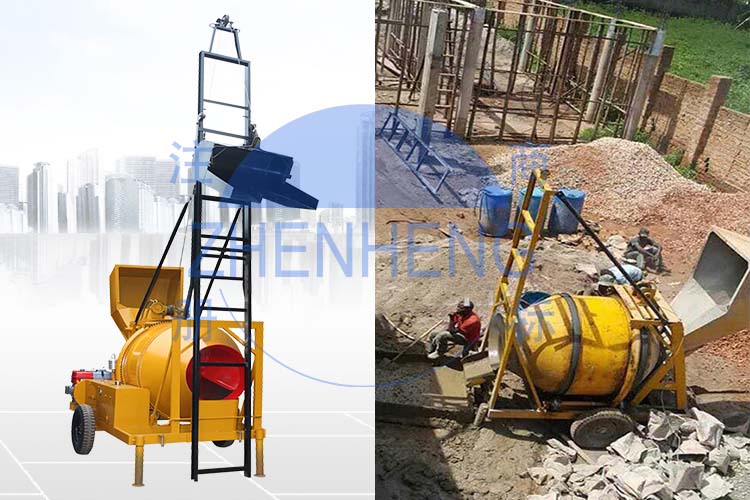

    High Automation JZR350 Diesel Concrete Mixer Hydraulic Hopper With Ladders

    High Automation JZR350 Diesel Concrete Mixer Hydraulic Hopper With Ladders


    Brief Introduction of High Automation JZR350 Diesel Concrete Mixer Hydraulic Hopper With Ladders

    JZR Series Concrete Mixer is drum type diesel concrete mixer, specially designed for power shortage areas to achieve mechanized construction. Popular capacities: 250L, 300L and 350L. It can mix hard-dry concrete, plastic concrete, light aggregate concrete and various mortar, suitable for construction site, road, bridge, water conservancy projects, etc.

    Features of High Automation JZR350 Diesel Concrete Mixer Hydraulic Hopper With Ladders

    1. Compact structure and stable performance;
    2. Reliable transmission;
    3. Great mixing quality and high mixing efficiency;
    4. High automation and convenient operation.

    Technical Parameters of High Automation JZR350 Diesel Concrete Mixer Hydraulic Hopper With Ladders

    ModelJZC350-Diesel mixer with Ladder
    Loading HopperBy Hydraulic System
    Basket Lifting systemBy Hydraulic System
    Output Per Hour10-14m³
    Loading Capacity560L
    Discharging Capacity350L
    Drum Rotation Speed14 r/min
    Drum Thickness8 mm
    Maximum Size of Aggregate60 mm
    Diesel Engine BrandJD Brand Diesel Engine 15HP
    Tyre Size6.50-16
    Overall Size(L×W×H)3150*2400*3200 mm
    Weight2400 kg
    Container Loading Plan2 sets Per 20GP , 5 sets Per 40 HC


    More Details of High Automation JZR350 Diesel Concrete Mixer Hydraulic Hopper With Ladders


    Concrete Mixing Drum

    The Drum Thickness is made by Q345 with thickness 6mm
    Easy maintenance base on the Bolt Connected Design of Grand Gear Ring. Transmission of power more stable.



    Frame

    The machine frame is made of NO.12 box iron which is Heavy-duty Frame.



    Riding Wheel

    Size: of Φ220mm x75mm
    Quantity: 4 sets
    Advantages: longer service life
    Rotation of drum more smoothly and stably.



    Transmission System

    The technology of the transmission system is improved by long production experience, guarantee stable function.



    Protection Cover

    It makes the machines looking more tidy, prevent the engine and transmission systems damaged by the dust or concrete, the service life of machines can be extended.



    Water-cooled Diesel Engine

    It is powerful driving force with low fuel consumption. brandy engine as changchai, changfa etc.,the quality is stable and easy to find suppliers at overseas market.



    Trailing Rod Flexible Guide Wheel

    The trailing rod make the mixer transported safely.
    The mixer is equipped with extra?one set of Guide Wheel, flexible changing of direction prevent side rollover.



    Hydraulic Oil Tank

    Oil tank capacity is more than 70L compared with others supply 30L tank, our oil tank can be filled more oil one time prevent the temperature goes highly during working process.




    Hydraulic Loading Hopper

    Loading hopper is driven by hydraulic cylinder, which has stable performance and long service time.



    Lifting frame

    the height of lifting can reach 17ms, it adopts to the project within 5 floors. The design enable the bucket lifted smoothly and efficiently.



    Lifting Bucket

    with 200L capacity, the lifting bucket lift concrete speedily.
