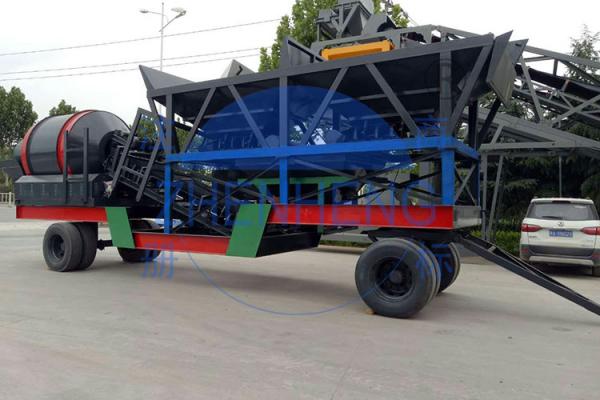

YHZM75 Mobile Concrete Batching Plant With JZM1500 Drum Concrete
Mixer adapt to the fast installation and movement. It is designed and
manufactured by our factory based on the practical construction
projects.
The whole design of is YHZM75 Mobile Concrete Batching Plant with convenient installation, stable and reliable operation
convenient transportation. These advantages make it the ideal
equipment in the road construction,bridge construction and other
long-distance production and transportation.
Power:380V,50HZ,3Phase
30KW Mixing Power of JZM1500 concrete mixer machine with 1.6m
discharge height,pneumatic discharge grate.
PLD1600 with 2-4 storage bins, water and additive weighing
system,control system etc.
Aggregate Bins has adopted electric weighing with sensor,the
batching aggregates can be automatically be applied for correction
and measure.
Main Technical Parameters of YHZM75 Mobile Concrete Batching Plant With JZM1500 Drum Concrete
Mixer
Model | JZM500-2 | JZM750-2 | JZM1000-2 | JZM1500-2 |
Theory capacity | 25 m³/h | 35 m³/h | 50 m³/h | 75 m³/h |
Discharging height | 1600 mm | 1600 mm | 1600 mm | 1600 mm |
Total power | 44 kw | 50 kw | 58.9 kw | 66.9 kw |
Dimension(L * W * H) | 8 *2.2*3.8m | 8* 2.2*3.8m | 10* 2.3*4.2m | 12*2.3* 4.2m |
Mixing System | Model of Mixer | JZM500 | JZM750 | JZM1000 | JZM1500 |
Mixing motor | 2*5.5kw | 2*7.5kw | 2*11kw | 2*15kw |
Discharging volume | 500 L | 750 L | 1000 L | 1500 L |
Aggregate System | Model of Batcher | PLD800-2 | PLD1200-2 | PLD1200-2 | PLD1600-2 |
Aggregate bin volume | 2*5 m³ | 2*6 m³ | 2*7 m³ | 2*8 m³ |
Max. Aggregate Dia | 60/80 mm | 60/80 mm | 60/80 mm | 60/80 mm |
Measurement System | Cement weighing hopper | 500 KG | 500 KG | 560 KG | 900 KG |
Water weighing support | 220 KG | 220 KG | 220 KG | 330 KG |
Additive weighing support | 30 KG | 30 KG | 30 KG | 40 KG |
Trailer Speed | 40-60 Km/h | 40-60 Km/h | 40-60 Km/h | 40-60 Km/h |
Optional cement silo | 50/100T | 50/100T | 50/100T | 50/100T |
FAQ of YHZM75 Mobile Concrete Batching Plant
Q: What kind of products do you have?
1. Stationary concrete batching plant arranges from HZS25 to
HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Portable drum concrete mixer with diesel engine.
5. Spare parts including screw conveyor and bolted cement silo.
Q: What`s your advantages?
We are manufacturer focused on technology developing, industrial
machine manufacturing and trading. The company has devoted itself
in concrete mixing machine industry more than30 years. Now, the
company has more than 100 employees while all team leaders and
above.And engaged in foreign trade export for many years.
Q: Are you trading company or manufacturer?
We are factory. We can design and manufacturer products with our
patent. Welcome to visit us to check it!
Q: What are the terms of payment in your formal trade?
Normally we can work on T/T term ,L/C term and Alibaba Trade
Assurance Order Online .
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
Q: What’s your after-sale service?
12 months warranty for main parts since departure.
On-site installation, debugging, workers training. Make sure that
your workers operate properly and know daily maintenance well.
Q: What’s your delivery time?
Generally it is 7-10 days if the goods are in stock. or it is 15-20
days if the goods are not in stock, it is according to quantity.
