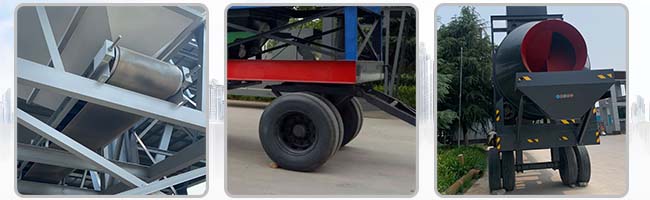

YHZM25 Mobile Concrete Batching Plant, which use the drum concrete mixer as JZM500 Concrete mixer, with
the aggragete bin volume as 5m³×2, Cement weighing, Water weighing
and Additive weighing system, the trailer speed for
40-60Km/h.PC+PLC control system ensures the high simple and
reliability, human-based intelligent control facilitates the
continuously producing.
YHZM25 Mobile Concrete Batching Plant adopt advanced technology and are designed and manufactured as per
International standards. It can produce any type of concrete to
meet customer requests with different type mixers, like twin shaft
mixer and planetary mixer. Widely used in construction projects, ready mix concrete production
and concrete prefabrication factory.
Features of YHZG25 Mobile Concrete Batching Plant
1. Aggregate batching and transferring is automatic and precise;
2. Concrete mixing quality is observable, drum clockwise rotating
for mixing, and anti-clockwise rotating for discharging;
3. The whole plant chassis can be moved easily, don't need to be
separated and assembled;
4. This plant is designed to work without foundation, even
cooperate working with horizontal cement silo;
5. Compared with twin-shaft concrete mixer plant, this concrete
batching plant is cheap and save the shipments cost.
Main Technical Parameters of YHZG25 Mobile Concrete Batching Plant
| Model | JZM500-2 | JZM750-2 | JZM1000-2 | JZM1500-2 |
| Theory capacity | 25 m³/h | 35 m³/h | 50 m³/h | 75 m³/h |
| Discharging height | 1600 mm | 1600 mm | 1600 mm | 1600 mm |
| Total power | 44 kw | 50 kw | 58.9 kw | 66.9 kw |
| Dimension(L * W * H) | 8 *2.2*3.8m | 8* 2.2*3.8m | 10* 2.3*4.2m | 12*2.3* 4.2m |
| Mixing System | Model of Mixer | JZM500 | JZM750 | JZM1000 | JZM1500 |
| Mixing motor | 2*5.5kw | 2*7.5kw | 2*11kw | 2*15kw |
| Discharging volume | 500 L | 750 L | 1000 L | 1500 L |
| Aggregate System | Model of Batcher | PLD800-2 | PLD1200-2 | PLD1200-2 | PLD1600-2 |
| Aggregate bin volume | 2*5 m³ | 2*6 m³ | 2*7 m³ | 2*8 m³ |
| Max. Aggregate Dia | 60/80 mm | 60/80 mm | 60/80 mm | 60/80 mm |
| Measurement System | Cement weighing hopper | 500 KG | 500 KG | 560 KG | 900 KG |
| Water weighing support | 220 KG | 220 KG | 220 KG | 330 KG |
| Additive weighing support | 30 KG | 30 KG | 30 KG | 40 KG |
| Trailer Speed | 40-60 Km/h | 40-60 Km/h | 40-60 Km/h | 40-60 Km/h |
| Optional cement silo | 50/100T | 50/100T | 50/100T | 50/100T |
FAQ of YHZG25 Mobile Concrete Batching Plant
Q: What’s your payment term?
We accept T/T(30% down payment and balance before shipping) and L/C
mostly, but if you prefer other payment terms please contact us for
further information.
Q: How long is your delivery time?
Usually, it is 7-10 workdays if the goods are in stock, or it is
15-20 working days if the goods are not in stock, it is according
to quantity.
Q: Can we paint our label on your product?
Of course. OEM and ODM are acceptable, please send us your logo or
brand, we’ll paint for you.
Q: What`s your advantages?
We are manufacturer focused on technology developing, industrial
machine manufacturing and trading. The company has devoted itself
in concrete mixing machine industry more than 30 years. Now, the
company has more than 100 employees while all team leaders and
above.And engaged in foreign trade export for many years.
