Portable 50 Cubic Meters Per Hour Drum Mobile Concrete Batching
Plant JZM1000, is one kind of highly integration concrete mixing
plant. It is designed for customer which need to change working
site frequently. All components is fixed on the chassis of concrete
mixing plant, and it is with wheel which is easily for movement.
This plant is completely equipped with concrete batching system,
mixing system, weighing system and fully automatic control system.
It occupy less plan and it is suitable for medium and small project
like water and electricity, road construction, port, bridge etc,
such movable engineering construction project.
Concrete mixing system:JZM1000 drum concrete mixer.
Aggregate system:PLD1200-2 bins, as volume 7m³×2.
Weighing system: water, cement and additive support equipment.
Control System:The control system of mixing station is equipped
with precise batching machine equipment, which can control several
independent batching lines at the same time.
The main features of 380V JZM1000 Mobile Concrete Equipment , 50 Cubic Meters / Hour
Concrete Batching Plant:
A: The overall layout
Modular design,easy to disassemble.
B: structure characteristics
Unique water supply lines, automatic water supply system, reduced
water time and increased production efficiency by 20 %
C: Traction mode
Trailer traction, easy to move and walk.
D: Control System
One-button start mode, simple operation, stable and reliable
performance.
Main Technical Parameters
The Technical Parameters of 380V JZM1000 Mobile Concrete Equipment, 50 Cubic Meters / Hour
Concrete Batching Plant
Model | JZM500-2 | JZM750-2 | JZM1000-2 | JZM1500-2 |
Theory capacity | 25m³/h | 35m³/h | 50m³/h | 75m³/h |
Discharging height | 1600mm | 1600mm | 1600mm | 1600mm |
Total power | 44kw | 50kw | 58.9kw | 66.9kw |
Dimension(L * W * H) | 8 X 2.2m X3.8m | 8m X 2.2m X3.8m | 10m X 2.3m X4.2m | 12m X 2.3m X 4.2m |
Mixing System | Model of Mixer | JZM500 | JZM750 | JZM1000 | JZM1500 |
Mixing motor | 2*5.5kw | 2*7.5kw | 2*11kw | 2*15kw |
Discharging volume | 500L | 750L | 1000L | 1500L |
Aggregate System | Model of Batcher | PLD800-2 | PLD1200-2 | PLD1200-2 | PLD1600-2 |
Aggregate bin volume | 5m³×2 | 6m³×2 | 7m³×2 | 8m³×2 |
Max. Aggregate Dia | 60/80mm | 60/80mm | 60/80mm | 60/80mm |
Measurement System | Cement weighing hopper | 500KG | 500KG | 560KG | 900KG |
Water weighing support | 220KG | 220KG | 220KG | 330KG |
Additive weighing support | 30KG | 30KG | 30KG | 40KG |
Trailer Speed | 40-60Km/h | 40-60Km/h | 40-60Km/h | 40-60Km/h |
Optional cement silo | 50/100T | 50/100T | 50/100T | 50/100T |
Q: Can I visit your factory?
A: Yes. Welcome to your visiting any time you are convenient!
Q: Are you trading company or manufacturer?
A: We are factory. We are trading and manufacturer combination.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is
20-30 days if the goods are not in stock, it is according to
quantity.
Q: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70%
balance payment should be paid by T/T before delivery. We also
support L/C, D/P, Western Union.
Q: Do you have CE certificate for your concrete batching plant /
cement silo?
A: Yes, we have. Both are our patent products, certificated by CE.

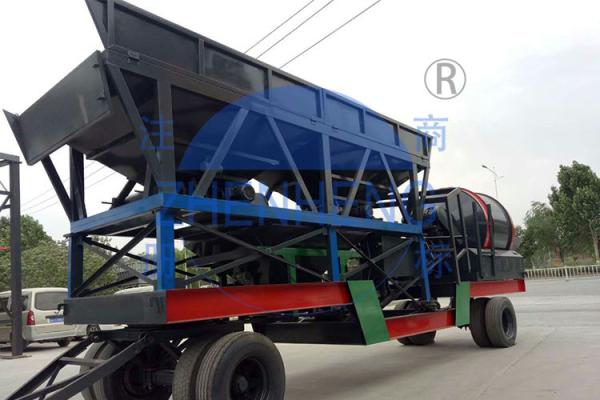

More Pictures of 380V JZM1000 Mobile Concrete Equipment, 50 Cubic Meters / Hour
Concrete Batching Plant
