1. Hydraulic system:
The openable side door is very easy to operate, maintain and
maintain.
The side door is made of special technology, which can effectively
reduce the operating noise. Adopt double pump and double circuit
open hydraulic system. Simple system, long component life and high
reliability. The pumping circuit adopts non-contact automatic
commutation to avoid the influence of commutation. The commutation
is accurate, stable and reliable. The hydraulic system is equipped
with a safety overflow protection device and an overpressure
automatic cut-off and interception device, so the main pump is
protected in multiple stages.
Suction filtration technology is used to prevent foreign matter
from entering the hydraulic circuit, thereby greatly improving
system reliability and extending the service life of system
components. Independent forced air cooling to ensure oil
temperature is below 60.
2. Electric control system:
Fully enclosed electrical control box, protection and control
devices can work in harsh conditions. It uses a PLC programmable
controller, a program controller simplifies electrical equipment,
greatly improves reliability and service life, and facilitates
troubleshooting by displaying faults. Wired remote control is safe
and convenient

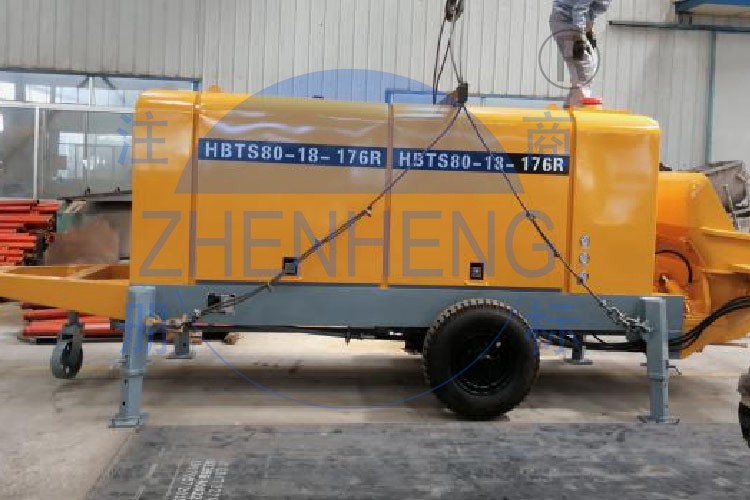

Advantages of 80m3/H Hydraulic Concrete Pump
1. A wide range of applications, can be used for the construction
of concrete construction, green soil transport, foundation pile
grouting, sludge transport.
2. In the construction can greatly improve the efficiency of the
project, reduce the cost of labor, and because the concrete mixing
pump uses concrete to pump concrete, it is convenient and safe to
work in narrow areas, sloped roofs and high-rise buildings.
3. Reduce labor costs, reduce labor intensity, improve construction
efficiency and project quality, and protect the environment.
4. The concrete is of higher quality and can be used for some more
demanding projects.
5. Smaller power, taking into account the carrying capacity of
rural power grids.
6. Easy to operate, easy to use, use the remote control to operate
the mixing pump, save trouble and worry.
7. Using a two-cylinder full hydraulic pumping system, can
transport conventional large aggregate or gravel concrete, stable
performance, safe and reliable.
| 1. Hydraulic system
Double open hydraulic loops with 2 pumps.The reliability of the
whole system is also much higher as well as the components' life is
prolonged greatly. This is convenient for judgeing and removing
trouble.
|
2. Electric control system
Compared with domestic product, the electric control system is
simplest, the element quantity is fewest and its reliability is the
highest.
Adopting proximity switch in hydraulic cylinder can realize
changing direction with non-touch, which ensures that the direction
can be changed reliably. |
|
| 3. Diesel Engine
The pump adopt Weichai diesel engine, a first-class brand in China.
It can ensure the power supply of the concrete mixer pump. |
4. Cooling system
The radiator equipment makes the working oil temperature of
hydraulic system below 70℃ and makes the machine in normal status.
|
|
Question 1. What is the function of the concrete pump?
Answer: It is used to pump all kinds of concrete to meet the
building work of buildings,bridges,dock,airport, railway,etc
Question 2. How to choose the suitable model of batch plant?
Answer: Just tell us the capacity (m3/h,t/h)of concrete you want to
pump concrete per hour.
Question 3. What payment terms you use?
Answer: Usually the world most common used T/T,L/C ,etc
Question 4: Do you have any cases abroad?
Answer: Yes, we imported to Pakistan, Philippine, Russia, Cambodia,
Sir Lanka, etc.
Question 5: How many engineers do you have?
Answer: We have more than 30 engineers. when go to
installation,have professional team to guide.
