Product Description:
YHZM Series is a new type of mobile concrete mixing station, it can
integrate feeding, weighing, lifting, and stirring. It can be
stopped and used at any time on a trailer unit. The mobile mixing
station is very quick to move and install, which is suitable for
short-term construction, long-term construction with necessary
frequent transitions, such as public railways, bridges, roads,
hydropower, and other projects.
Main Features:
1) Storing, weighing, transition, mixing, and discharge are all
controlled by the fully automatic control system, it can save time
and increase concrete productivity.
2) Fully sealed production device, it can reduce dust pollution and
noise by adopting an advanced dust removal system
3) Innovatively designed mixing blades can make the mixture evenly
and reliable with high efficiency.
4) High-quality motor vibrating screen mesh, can greatly improve
working efficiency and lower the failure rate.
5) Unique designed base trailer structure, apparently reduces floor
area required.
6) Easy and reliable operation by adopting a full automatic PC+PLC
smart control system, it is also equipped with
malfunction-indication and automatic diagnosis program for working
safety.

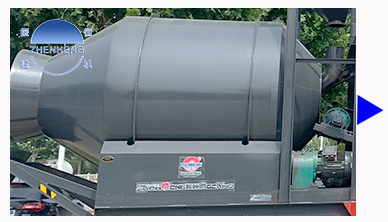

Detailed Equipment
 | Easy operation, small residual capacity, and convenient cleaning. |
Weighing accuracy with the electronics weighing system;
High automatic degree with the control system. |
|
 | Weighing system includes aggregate weighing system, cement weighing
system, water weighing system, additive weighing system(optional).
Famous brand electron component. Accurate measurement, up to ±1%
|
Technical Parameters
| ITEM | YHZM25 | YHZM35 | YHZM50 | YHZM75 | YHZM120 |
| Productivity | 25m³/h | 35 m³/h | 50 m³/h | 75 m³/h | 120 m³/h |
| Total Power | 38kw | 46kw | 60kw | 67kw | 77.5kw |
| Total Weight | 11t | 13t | 14t | 14.5t | 26t |
| Aggregate Batch Machine | PLD800-2 | PLD1200-3 | PLD1600-3 | PLD2400-3 | PLD3200-4 |
| Weigh Hopper | 800L | 1200L | 1600L | 2400L | 3200L |
| Concrete Mixer | JZM500 | JZM750 | JZM1000 | JZM1500 | JZM2000 |
| Weighing system | cement weighing. water weighing.additive weighing |
| Pneumatic System |
| Fully Automatical Control System |
| Screw Conveyor | LSY219*6M | LSY219*6M | LSY273*8M | LSY273*8M | LSY273*8M |
| Horizontal Cement Silo(optional) | 50T*1 | 50T*1 | 50T*1 | 50T*1 | 70T*2 |

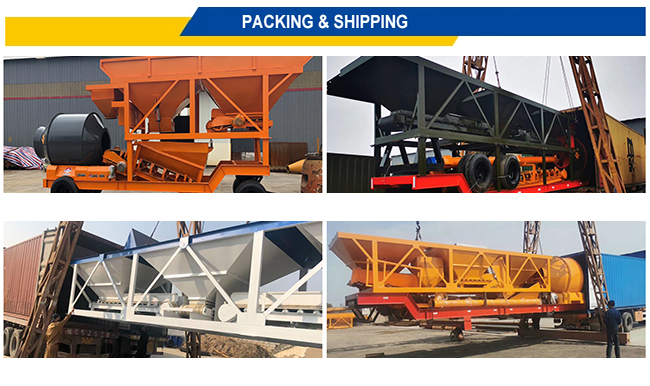

Packing & Shipping
FAQ
1. What kind of equipment and services do you offer?
A: We have to produce and sales of various kinds of concrete mixing
equipment, mixer, pump, the stability of the soil mixing equipment.
2. Do you have a warranty on your equipment?
A: Yes, we offer a full guarantee for the purchase of new equipment.
3. How long will your offer hold good?
A: We are A manufacturer and never seek too much profit. Prices
remained basically stable throughout the year. We adjust prices
only when the international currency exchange rate changes or the
cost of labor and raw materials changes.
4. What about the installation and commissioning of the new
purchase?
A: The installation is simple and convenient. The customer service
staff will guide you one-on-one, or watch video installation,
professional staff, etc
5.How long will it take to build a new concrete batching plant?
A: It usually takes 20 days. A lot of it takes 10 days.
6. When is the commissioning time of the new brand concrete
batching plant?
A: no "soft terms" are attached within 25 business days after
receipt of the 30% depositor 100% irrevocable sight letter of
credit
What if something goes wrong with my equipment You can email us the
photo, tell us what happened, or call us. Our service hotline is
available all day and we will reply to you immediately. We can also
provide on-site technical service according to customer
requirements.
