Brand Name : | ZHENHENG |
Model Number : | JZR350 |
Price : | Negotiation |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 30 SET PER MONTH |
Delivery Time : | 7-15 WORKING DAYS AFTER CONFIRM ORDER |

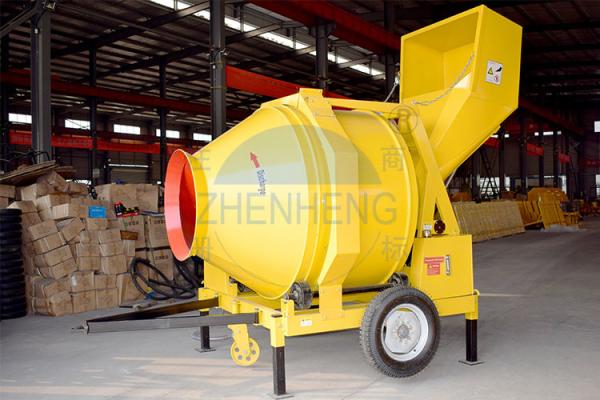

Concrete Mixer Diesel Engine Mixer Machine JZR350 Drum Concrete Mixer
Introduction Concrete Mixer Diesel Engine Mixer Machine JZR350 Drum Concrete Mixer
JZR Series Concrete Mixer is drum type diesel concrete mixer,
specially designed for power shortage areas to achieve mechanized
construction. Popular capacities: 250L, 300L and 350L. It can mix
hard-dry concrete, plastic concrete, light aggregate concrete and
various mortar, suitable for construction site, road, bridge, water
conservancy projects, etc.
Compact structure and stable performance;
Reliable transmission;
Great mixing quality and high mixing efficiency;
High automation and convenient operation.
Technical Parameters Concrete Mixer Diesel Engine Mixer Machine JZR350 Drum Concrete Mixer
Model | JZR350 |
Loading Hopper | By Hydraulic System |
Output Per Hour | 10-14m³ |
Loading Capacity | 560L |
Discharging Capacity | 350L |
Drum Rotation Speed | 14 r/min |
Drum Thickness | 8 mm |
Drum Steel Plate Model | Q345 |
Maximum Size of Aggregate | 60 mm |
Diesel Engine Brand | YANMAR Brand Water-cooled Diesel Engine18 HP |
Tyre Size | 6.50-16 |
Overall Size(L×W×H) | 3150*2400*3200 mm |
Weight | 1800 kg |
Container Loading Plan | 2 sets Per 20GP , 6 sets Per 40 HC |
More Photos Concrete Mixer Diesel Engine Mixer Machine JZR350 Drum Concrete Mixer
Features of Concrete Mixer Diesel Engine Mixer Machine JZR350 Drum Concrete Mixer
Concrete Mixing Drum The Drum Thickness is made by Q345 with thickness 6mm Easy maintenance base on the Bolt Connected Design of Grand Gear Ring. Transmission of power more stable. | |
Frame The machine frame is made of NO.12 box iron which is Heavy-duty Frame | |
Riding Wheel Size: of Φ220mm x75mm Quantity: 4 sets Advantages: longer service life Rotation of drum more smoothly and stably | |
Transmission System The technology of the transmission system is improved by long production experience , guarantee stable function | |
Protection Cover It makes the machines looking more tidy,prevent the engine and transmission systems damaged by the dust or concrete ,the service life of machines can be extended . | |
Water-cooled Diesel Engine It is powerful driving force with low fuel consumption. brandy engine as changchai, changfa etc.,the quality is stable and easy to find suppliers at overseas market. | ![]() |
![]() | Trailing Rod Flexible Guide Wheel The trailing rod make the mixer transported safely. The mixer is equipped with extra one set of Guide Wheel, flexible changing of direction prevent side rollover. |
Hydraulic Oil Tank Oil tank capacity is more than 70L compared with others supply 30L tank, our oil tank can be filled more oil one time prevent the temperature goes highly during working process. | ![]() |
![]() | Hydraulic Loading hopper Loading hopper is driven by hydraulic cylinder, which has stable performance and long service time. |
![]() |
