Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder

    Buy cheap Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder from wholesalers

    Buy cheap Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder from wholesalers
    • Buy cheap Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder from wholesalers
    • Buy cheap Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder from wholesalers
    • Buy cheap Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder from wholesalers
    • Buy cheap Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder from wholesalers
    • Buy cheap Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder from wholesalers

    Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder

    Ask Lasest Price
    Brand Name : ZHENHENG
    Model Number : JZR350 with Ladders
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 30 SET PER MONTH
    Delivery Time : 7-15 WORKING DAYS AFTER CONFIRM ORDER
    • Product Details
    • Company Profile

    Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder

    Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder


    Brief Introduction of Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder

    Diesel Concrete Mixer Hydraulic Hopper JZR350T Model with Lifting Hopper is One of very popular modles in JZR Series Concrete Mixer, which could transport the concrete easy to the high building site. as heigh as 17m, it's easy to touch up with the Low building for home use. It can mix hard-dry concrete, plastic concrete, light aggregate concrete and various mortar, suitable for construction site, road, bridge, water conservancy projects, etc.

    Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder Parameters

    Model

    JZC350-Diesel mixer with Ladder

    Loading Hopper

    By Hydraulic System

    Basket Lifting system

    By Hydraulic System

    Output Per Hour

    10-14m³

    Loading Capacity

    560L

    Discharging Capacity

    350L

    Drum Rotation Speed

    14 r/min

    Drum Thickness

    8 mm

    Maximum Size of Aggregate

    60 mm

    Diesel Engine Brand

    JD Brand Diesel Engine 15HP

    Tyre Size

    6.50-16

    Overall Size(L×W×H)

    3150*2400*3200 mm

    Weight

    2400 kg

    Container Loading Plan

    2 sets Per 20GP , 5 sets Per 40 HC


    Features of Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder

    • Compact structure and stable performance;

    • Reliable transmission;

    • Great mixing quality and high mixing efficiency;

    • High automation and convenient operation.

    More Details of Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder


    Concrete Mixing Drum

    The Drum Thickness is made by Q345 with thickness 6mm
    Easy maintenance base on the Bolt Connected Design of Grand Gear Ring. Transmission of power more stable.



    Frame

    The machine frame is made of NO.12 box iron which is Heavy-duty Frame.



    Riding Wheel

    Size: of Φ220mm x75mm
    Quantity: 4 sets
    Advantages: longer service life
    Rotation of drum more smoothly and stably.



    Transmission System

    The technology of the transmission system is improved by long production experience, guarantee stable function.

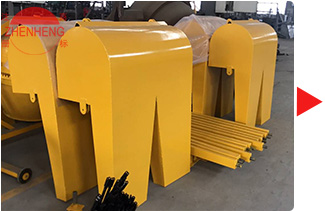

    Protection Cover

    It makes the machines looking more tidy, prevent the engine and transmission systems damaged by the dust or concrete, the service life of machines can be extended.



    Water-cooled Diesel Engine

    It is powerful driving force with low fuel consumption. brandy engine as changchai, changfa etc.,the quality is stable and easy to find suppliers at overseas market.



    Trailing Rod Flexible Guide Wheel

    The trailing rod make the mixer transported safely.
    The mixer is equipped with extra?one set of Guide Wheel, flexible changing of direction prevent side rollover.



    Hydraulic Oil Tank

    Oil tank capacity is more than 70L compared with others supply 30L tank, our oil tank can be filled more oil one time prevent the temperature goes highly during working process.




    Hydraulic Loading Hopper

    Loading hopper is driven by hydraulic cylinder, which has stable performance and long service time.



    Lifting frame

    the height of lifting can reach 17ms, it adopts to the project within 5 floors. The design enable the bucket lifted smoothly and efficiently.



    Lifting Bucket

    with 200L capacity, the lifting bucket lift concrete speedily.

    Quality Hydraulic Hopper 350L 14m³/H JZR350T Diesel Cement Mixer With Ladder for sale
