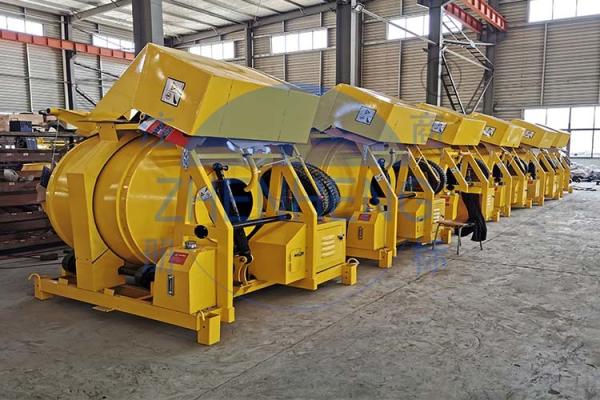

12 - 14m³ / H Diesel Construction Equipment, 22hp Small Batch
JZR500 Diesel Concrete Mixer
Brief Introduction Of 12 - 14m³ / H Diesel Construction Equipment, 22hp Small Batch JZR500
Diesel Concrete Mixer
Concrete Mixer is a kind of gravity type double cone reversing
concrete mixer.It turns forward to stir and reverse to discharge at
working.It can stir plastic and semi dry concrete.
The mixing drum of the machine through the ring geare driven,it has
plenty of advantages such as reliable transmission,light weight,low
energy consumption,compact structure,smooth operation,simple
operation,good mixing quality,high efficiency and so on.
Parameters of 12 - 14m³ / H Diesel Construction Equipment, 22hp Small Batch JZR500
Diesel Concrete Mixer
ITEM | JZR500 |
Discharging Volume | 500L |
Charging Volume | 800L |
Capacity | 18-20m3/h |
Max. Size of Aggregate | 60-80mm |
Mixing Drum Rotational Speed | 14r/min |
Mixing Motor Power | 22HP |
Max. Towing Speed | 14km/h |
Size | 3600*2500*3650mm |
Features of 12 - 14m³ / H Diesel Construction Equipment, 22hp Small Batch JZR500
Diesel Concrete Mixer
Engine is specially designed for some remote areas without
electricity to achieve mechanized construction. The principle is
the existing JZR500 concrete mixer is installed a diesel power
generation system, and this system can supply electricity power to
make sure the normal running of mixer. The generating system's out
power is 25KW, so it can also supply extra part of electricity
power to other small devices, as concrete vibrators and lighting
equipments, while it's keeping the mixer's operation.In addition,
the machine can also match the external power directly, achieves
diesel-electric dual-use.
Adding a water pump for water circulation between water tank and
water radiator,it keeps the water temperatures stable Removing the
air sucking point from the back to the front to reduce its sucking
dust ,it will be helpful to prolong the service life of the
engine.Sincola Diesel Engine Concrete Mix is a bipyramid reversal
discharging self-loading concrete mixer, the mixing drum's forward
rotation is mixing, reverse rotation is discharging. The machine
has the benefits of simple structure, reliable, good mixing
quality, high efficiency, light weight, and easy manipulation of
maintenance, so it is more advanced models of concrete mixers.
Because outfitting with a diesel-powered engine, it is more
applicable to the remote areas and the wild which have no electric
power supply.
More Details of 12 - 14m³ / H Diesel Construction Equipment, 22hp Small Batch JZR500
Diesel Concrete Mixer
|
Concrete Mixing Drum
The Drum Thickness is made by Q345 with thickness 6mm
Easy maintenance base on the Bolt Connected Design of Grand Gear
Ring. Transmission of power more stable. |

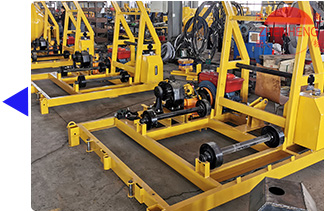

Frame
The machine frame is made of NO.12 box iron which is Heavy-duty
Frame. |
|
|
Riding Wheel
Size: of Φ220mm x75mm
Quantity: 4 sets
Advantages: longer service life
Rotation of drum more smoothly and stably. |
Transmission System
The technology of the transmission system is improved by long
production experience, guarantee?stable function. |
|
|

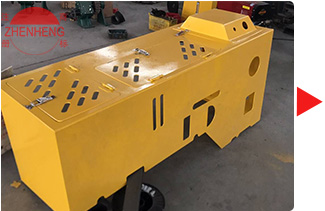

Protection Cover
It makes the machines looking more tidy, prevent the engine and
transmission systems damaged by the dust or concrete, the service
life of machines can be extended. |

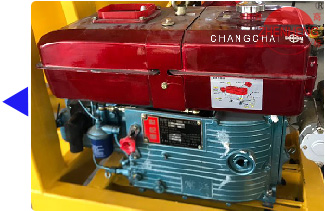

Water-cooled Diesel Engine
It is powerful driving force with low fuel consumption. brandy
engine as changchai, changfa etc.,the quality is stable and easy to
find suppliers at overseas market. |
|
|
Trailing Rod Flexible Guide Wheel
The trailing rod make the mixer transported safely.
The mixer is equipped with extra?one set of Guide Wheel, flexible
changing of direction prevent side rollover. |
Hydraulic Oil Tank
Oil tank capacity is more than 70L compared with others supply 30L
tank, our oil tank can be filled more oil one time prevent the
temperature goes highly during working process. |
|
|
Hydraulic Loading hopper
Loading hopper is driven by hydraulic cylinder, which has stable
performance and long service time.
|
Our Service
1. Well-trained and experienced staff to answer all your inquiries
in fluent English and Russia.
2. OEM & ODM is welcome. OEM brand is available.
3. If you have any idea or demand, we can provide the customization
service.
4. Protection of your market area, ideas of design and all your
private information.
5. We will supply the spare parts to insure the quality of our
mixer.
6. Your inquiry will be replied within 24 hours.
7. Provide following up after-sales services. We will dispatch our
serviceman to solve the problem for you, if you have questions
about our mixer.
How to maintain the mixer?
The maintenance of concrete mixer is very important for concrete
mixer owner, because it is directly relevant to the service life
and efficiency of a concrete mixer. We will give some advice on
maintenance of concrete mixer.
1. Lubricate the bearing parts regularly according to its service
condition. Adopt calcium soap grease to lubricate it. Adopt engine
oil to lubricate reducer.
2. Check the sealing of concrete mixer regularly. Inspect the
quality of sealer in time when leakage is found.
3. Examine securing device frequently. Tighten up it the moment it
becomes less crowded.
4. Inspect the control system constantly to guarantee its good
contact and dry it frequently.
5. After long life-time service, blades and drum may be worn out.
Check and adjust clearance between blades and drum.
6. Never put your hands or other clubs into the drum to avoid
danger.
7. Don't turn on/off concrete mixer constantly when using it. The
interval time must above 5 seconds.
