Belt Type YHZS35 Mobile Concrete Mixing Plant Twin Shaft JS750 Mixer

    Buy cheap Belt Type YHZS35 Mobile Concrete Mixing Plant Twin Shaft JS750 Mixer from wholesalers

    Buy cheap Belt Type YHZS35 Mobile Concrete Mixing Plant Twin Shaft JS750 Mixer from wholesalers
    • Buy cheap Belt Type YHZS35 Mobile Concrete Mixing Plant Twin Shaft JS750 Mixer from wholesalers
    • Buy cheap Belt Type YHZS35 Mobile Concrete Mixing Plant Twin Shaft JS750 Mixer from wholesalers
    • Buy cheap Belt Type YHZS35 Mobile Concrete Mixing Plant Twin Shaft JS750 Mixer from wholesalers

    Belt Type YHZS35 Mobile Concrete Mixing Plant Twin Shaft JS750 Mixer

    Ask Lasest Price
    Brand Name : ZHENHENG
    Model Number : YHZS35 Mobile concrete batching plant
    Certification : SGS, ISO, BV, CE
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 30 sets per month
    Delivery Time : 7-15 working days after confirm order
    • Product Details
    • Company Profile

    Belt Type YHZS35 Mobile Concrete Mixing Plant Twin Shaft JS750 Mixer

    Belt Type Mobile Concrete Mixing Plant, Twin Shaft JS750 Mixer YHZS35 Concrete Batching Plant


    Description of Belt Type Mobile Concrete Mixing Plant, Twin Shaft JS750 Mixer YHZS35 Concrete Batching Plant:


    Belt Type Mobile Concrete Mixing Plant, Twin Shaft JS750 Mixer YHZS35 Concrete Batching Plant adopts electronic scale accumulative measurement, cement, water, admixture are used weighing hopper, accurately measurement, computer centralized control, simple operation, easy adjustment and reliable quality.


    Belt Type Mobile Concrete Mixing Plant, Twin Shaft JS750 Mixer YHZS35 Concrete Batching Plant equipped with this product adopts the design of closed shaft end device of the mixer, which can effectively prevent the phenomenon of slurry leakage. The blades and lining plates are made of alloy wear-resistant materials to prolong the service life.


    Belt Type Mobile Concrete Mixing Plant, Twin Shaft JS750 Mixer YHZS35 Concrete Batching Plant adopts double-shaft compulsory mixer and vertical-axis planetary mixer, have the advantage of low mixing time, discharge quickly, mixing equality and high productivity, can produce plastic, dry-hard and other concrete, reliable quality.


    Belt Type Mobile Concrete Mixing Plant, Twin Shaft JS750 Mixer YHZS35 Concrete Batching Plant are conveyed by conveyor belts, which are more stable and have higher transport efficiency.And transport belt apply the nylon ring belt, to prevent transporting prevent.


    Belt Type Mobile Concrete Mixing Plant, Twin Shaft JS750 Mixer YHZS35 Concrete Batching Plant are equipped with one aggregate silos, which can be customized according to customer needs. The discharge door is the patent design,to the utmost extent to reduce the stock phenomenon of the door by sand.


    Technical Parameters of Belt Type Mobile Concrete Mixing Plant, Twin Shaft JS750 Mixer YHZS35 Concrete Batching Plant

    ModelYHZ35
    Theory capacity35m³/h
    Discharging height3800mm
    Total power42kw
    Approximate weight without siloAbout 15T
    Dimension(L * W * H)13.2m X 3.2m X 6.3m
    Moving size(L * W * H)11.8m X 2m X3.8m
    Mixing SystemModel of MixerJS750
    Mixing motor22kw
    Charging volume1200L
    Discharging volume750L
    Aggregate SystemAggregate bin6m³×2
    CylinderSCU φ100
    Aggregate conveyer SystemMotorized PulleyWII-500x650
    Conveyor beltW650×L22000mm
    Measurement SystemCement weighing hopper400KG
    Water weighing and support frame170KG
    Additive weighing and support frame20KG
    Pneumatic ControlSystemAir compressor0.6m³/min 1 sets
    Electromagnetic gas valve4V310 6 sets
    Moving SystemTowing pinφ50mm/ φ90mm 1 set
    Tyre70R16 4sets
    Computer Control SystemIndustrial control computer1 set
    Display15” liquid crystal LCD

    Q: Can you test our order before shipping?
    A: Yes. All of our goods will test in factory before shipping to customer.


    Q: How long it takes to do all the installation
    A: It's at most 5days processing and manufacturing for single machine,for production line,at most 15days.


    Q: Can we visit your factory?
    A: Yes. You can visit our factory at anytime you want.

    Q: Can you put our logo on the machine?
    A: Yes,it is available.LOGO and color are usually as per customer's requirement.

    Q: What’s the warranty time?
    A: From the date of shipment, 1 year or 1500working hours, whichever comes first.

    Q: What’s your payment term?
    A: We accept T/T(30% down payment and balance before shipping) and L/C mostly, but if you prefer other payment terms please contact us for further information.

    Q: How long is your delivery time?
    A: Usually, it is 7-10 workdays if the goods are in stock, or it is 15-20 working days if the goods are not in stock, it is according to quantity.

    Q: Can we paint our label on your product?

    A: Of course. OEM and ODM are acceptable, please send us your logo or brand, we’ll paint for you.

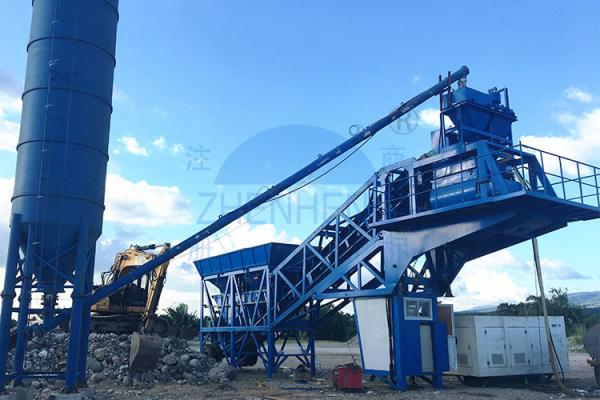

    Reference photos of Belt Type Mobile Concrete Mixing Plant, Twin Shaft JS750 Mixer YHZS35 Concrete Batching Plant
