Hopper 300kg Charging 800L Mobile Concrete Mixer Machine

    Buy cheap Hopper 300kg Charging 800L Mobile Concrete Mixer Machine from wholesalers

    Buy cheap Hopper 300kg Charging 800L Mobile Concrete Mixer Machine from wholesalers
    • Buy cheap Hopper 300kg Charging 800L Mobile Concrete Mixer Machine from wholesalers
    • Buy cheap Hopper 300kg Charging 800L Mobile Concrete Mixer Machine from wholesalers

    Hopper 300kg Charging 800L Mobile Concrete Mixer Machine

    Ask Lasest Price
    Brand Name : ZHENHENG
    Model Number : YHZS25 Mobile concrete batching plant
    Certification : SGS, ISO, BV, CE
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 30 sets per month
    Delivery Time : 7-15 working days after confirm order
    • Product Details
    • Company Profile

    Hopper 300kg Charging 800L Mobile Concrete Mixer Machine

    Mobile Concrete Batch Plant YHZS25 Mobile Concrete Mixer Machine


    The main features of Mobile Concrete Batch Plant YHZS25 Mobile Concrete Mixer Machine:
    • Storing, weighing, transit, mixing and discharging are all controlled by full automatic control system, saves time vastly.
    • Fully sealed production mode, with advanced dust removing system, vastly reduces dust and noise pollution.
    • Unique designed mixing blades make the mixing easy, reliable and with high efficiency.
    • High quality motor propelled vibration screen mesh, vastly increases efficiency, meantime lowers the fault rate.
    • Specially designed storage bottom structure, vastly reduces floor area required.
    • Adopts double full automatic computer or manual control system, with malfunction automatic diagnosis program, simple and reliable operation.


    The Technical Parameters of Mobile Concrete Batch Plant YHZS25 Mobile Concrete Mixer Machine

    ModelYHZ25
    Theory capacity25m³/h
    Discharging height3800mm
    Total power38.5kw
    Approximate weight without siloAbout 13T
    Dimension(L * W * H)13.2m X 3.2m X 6.3m
    Moving size(L * W * H)11.8m X 2m X3.8m
    Mixing SystemModel of MixerJS500
    Mixing motor18.5kw
    Charging volume800L
    Discharging volume500L
    Aggregate SystemAggregate bin5m³×2
    CylinderSCU φ100
    Aggregate conveyer SystemMotorized PulleyWII-500x650
    Conveyor beltW650×L21000mm
    Measurement SystemCement weighing hopper300KG
    Water weighing and support frame120KG
    Additive weighing and support frame20KG
    Pneumatic ControlSystemAir compressor0.6m³/min 1 sets
    Electromagnetic gas valve4V310 6 sets
    Moving SystemTowing pinφ50mm/ φ90mm 1 set
    Tyre70R16 4sets
    Computer Control SystemIndustrial control computer1 set
    Display15” liquid crystal LCD

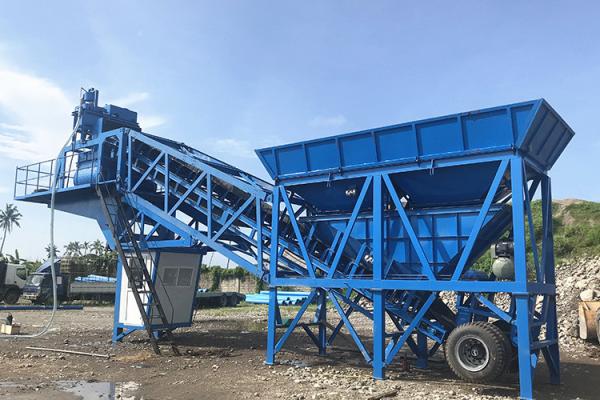

    More photos of Mobile Concrete Batch Plant YHZS25 Mobile Concrete Mixer Machine


    Q: Can you test our order before shipping?
    A: Yes. All of our goods will test in factory before shipping to customer.


    Q: How long it takes to do all the installation
    A: It's at most 5days processing and manufacturing for single machine,for production line,at most 15days.


    Q: Can we visit your factory?
    A: Yes. You can visit our factory at anytime you want.

    Q: Can you put our logo on the machine?
    A: Yes,it is available.LOGO and color are usually as per customer's requirement.
