Produce Capacity as 35m3/H, Electric Power JZM750 Mobile Concrete Batching Plant With Drum Type
Concrete Mixer as one of the YHZG Series mobile concrete batching plant is a new
type mixing plant adapt to the fast installation and movement. It
is designed and manufactured by our factory based on the practical
construction projects. The whole design is with convenient
installation, stable and reliable operation convenient
transportation. It has the advantages of flexible movement, quick
and easy assembly and disassembly, and stable performance. It is
the preferred choice for field construction projects such as
railways, highways, ports, bridges, and hydropower projects.
Electric Power JZM750 Mobile Concrete Batching Plant With Drum Type
Concrete Mixer is a mobile concrete mixing station equipment. Through ingenious
design, the batching system, batching system, mixing system,
storage, unloading, and automatic control system of the mixing
station are centralized in a trailer unit, and the movement of the
mixing station is realized through the trailer. mobile mixing plant
can produce 35-square-concrete concrete output.
Quick disassembly
Except for the connecting equipment such as screw conveyor and
cement silo. All the wiring of the mixing station need not be
removed. Only 30tons of cranes need to be matched, and the shift
can be dismantled in one day.
High degree of automation
The control room uses the microcomputer control system to
automatically feed the material. The mixing station operator can
set the ratio and complete the rated mixing times. Customers can
also choose semi-automatic manual control to perform different
operations on each batch of concrete.
Stir well
With a compulsory twin shaft concrete mixer, uniform mixing can be
achieved with the shortest mixing time.
Technical Parameters of Electric Power JZM750 Mobile Concrete Batching Plant With Drum Type
Concrete Mixer:
Model | JZM500-2 | JZM750-2 | JZM1000-2 | JZM1500-2 |
Theory capacity | 25m³/h | 35m³/h | 50m³/h | 75m³/h |
Discharging height | 1600mm | 1600mm | 1600mm | 1600mm |
Total power | 44kw | 50kw | 58.9kw | 66.9kw |
Dimension(L * W * H) | 8 X 2.2m X3.8m | 8m X 2.2m X3.8m | 10m X 2.3m X4.2m | 12m X 2.3m X 4.2m |
Mixing System | Model of Mixer | JZM500 | JZM750 | JZM1000 | JZM1500 |
Mixing motor | 2*5.5kw | 2*7.5kw | 2*11kw | 2*15kw |
Discharging volume | 500L | 750L | 1000L | 1500L |
Aggregate System | Model of Batcher | PLD800-2 | PLD1200-2 | PLD1200-2 | PLD1600-2 |
Aggregate bin volume | 5m³×2 | 6m³×2 | 7m³×2 | 8m³×2 |
Max. Aggregate Dia | 60/80mm | 60/80mm | 60/80mm | 60/80mm |
Measurement System | Cement weighing hopper | 500KG | 500KG | 560KG | 900KG |
Water weighing support | 220KG | 220KG | 220KG | 330KG |
Additive weighing support | 30KG | 30KG | 30KG | 40KG |
Trailer Speed | 40-60Km/h | 40-60Km/h | 40-60Km/h | 40-60Km/h |
Optional cement silo | 50/100T | 50/100T | 50/100T | 50/100T |
Features of Electric Power JZM750 Mobile Concrete Batching Plant With Drum Type
Concrete Mixer:
a. Tires: Double tires, strong pressure bearing capacity, strong stability,
non-slip.
b. Support leg: Quick disassemble and assembly, stabilize machine during work,
protect tires, and extend service life.
c. Universal Steering wheel: can be dragged by a medium-sized
forklift directly, ensure the direction changing stably.
d. Storage hopper base: moved from the middle to the front generating
two advantages:
a). remaining space can be used for the generator, control cabinet,
water tank, tool box, etc.;
b). shorten the length of the feeding belt and the feeding time,
thereby shortening the single mixing cycle by 10s, and improving
the working efficiency.
e. Support steel: Increase the bearing capacity of the chassis and extend the
service life.
Compact structure: Movable completely, work on the supporting legs, No foundation
needed.

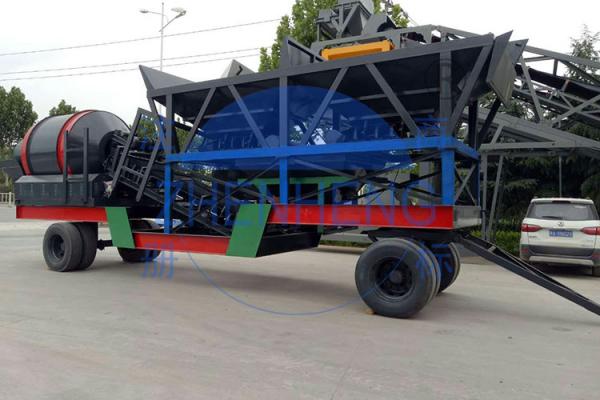

More reference photos of Electric Power JZM750 Mobile Concrete Batching Plant With Drum Type
Concrete Mixer:
