Brief Introduction to 5 - 20mpa 30m3 / H Electric Concrete Pump /
Vibrator Stable Performance
A concrete pump is the construction machinery used for transferring
liquid concrete by using the pumping mechanism. With the increase
in technology, the use of the traditional crane-bucket concrete
pouring and stationary concrete pumps is decreasing, and the mobile
concrete pumps for sale are becoming popular.Our various motor
concrete pumps( diesel engine concrete pumps) mainly cover capacity
from 30-120m³/h and pressure from 5-20Mpa.
HBT50 has maximum output of 50 cubic meter per hour, equipped with
the unique hopper and blade design, so as to less material left and
easy to clean. It can adapt to a variety of concrete formulation.
Good maintainability, easy to repair and disassemble.
Parameters of 5 - 20mpa 30m3 / H Electric Concrete Pump / Vibrator
Stable Performance:

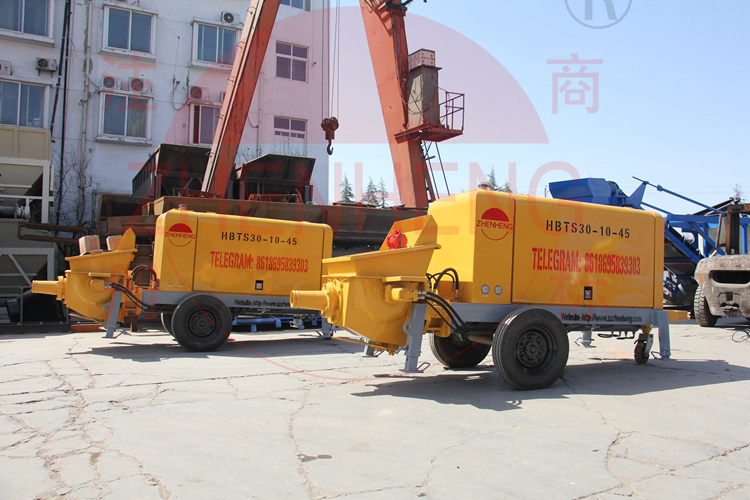

| Item | HBTS30-10-45 |
| Max Theoretical Concrete Output (m3/h) | 30 |
Max Theoretical Conveying Distance (vertical Height/Horizontal Distance) (m) | 500/150 |
Max Concrete outlet Pressure (Mpa) | 10 |
| Distribution Valve | S Valve |
| Max Aggregate size(mm) | 30 |
| Concrete Slump(mm) | 100～200 |
| Concrete Cylinder Diameter(mm) | φ160×1000 |
| Oil Tank Diameter(mm) | φ100×φ63×1000 |
| Hopper Capacity/Filling Height (m3/mm) | 0.4/1100 |
| Concrete Pumping Pressure (Mpa) | 23 |
| Hopper Mixing Pressure(Mpa) | 14 |
| Oil Tank Capacity (L) | 200 |
| Cleaning Mode | High Pressure Washing |
| Motor (kw) | 45 |
| Oil Pump (ml/r) | 112(Korea KAWASAKI) |
| Valve Group | Germany Bolseen |
| Hydraulic Hose | Italy MANULI |
| Electric | CHNT/Schneider |
| Dimension (L×W×H)(mm) | 4750×1600×1950 |
| Weight (kg) | 3000 |
The Working of 5 - 20mpa 30m3 / H Electric Concrete Pump / Vibrator
Stable Performance:
The basic principle of working of all types of concrete pumps is
the same. The pump operates on the basis that one piston draws
liquid concrete from a hopper into a cylinder while the other
piston pushes its concrete out into the discharge pipes, both the
functions happening simultaneously. There is a valve that controls
which cylinder opens to the concrete hopper and which one opens to
the discharge pipes. The valve switches every time the pistons
reach the end point, and the process goes on with the first
cylinder now releasing the concrete and the second cylinder drawing
fresh concrete from the hopper.
Features to 5 - 20mpa 30m3 / H Electric Concrete Pump / Vibrator
Stable Performance:
1. Saving fuel, strong power and long service life. The whole
machine adopts intelligent work, but it has not the same with the
motor pump working environment (can work in no power environment).
Superior pumping capacity, faster pumping speed, less plugging
phenomenon, Higher cost performance.
2. The hydraulic system allows pumping and dispensing valve with
each commutation process "growth afterburner 'ability to
effectively reduce the probability of pumping plugging improve
pumping stability and enhance the adaptability of concrete
material.
3. Reversing device with high performance cushioning, the S valve
swing more forcefully to avoid the impact of S-valve, due to poor
material concrete possibility of being stuck significantly reduced.
4. A pressurized lubrication system, can effectively enhance the
automatic lubrication system pressure and to avoid obstruction oil,
improve reliability.
5. Accumulator can automatic unloading when pump stops, and it can
also maintain the normal pumping when damaged, to ensure system
reliability, make maintenance work safer
6. Accessories has nice commonality, interchangeability, easy to
purchase, lower maintenance costs.
More Details of 5 - 20mpa 30m3 / H Electric Concrete Pump /
Vibrator Stable Performance:
| 1. Hydraulic system
Double open hydraulic loops with 2 pumps.The reliability of the
whole system is also much higher as well as the components' life is
prolonged greatly. This is convenient for judgeing and removing
trouble.
|
2. Electric control system
Compared with domestic product, the electric control system is
simplest, the element quantity is fewest and its reliability is the
highest.
Adopting proximity switch in hydraulic cylinder can realize
changing direction with non-touch, which ensures that the direction
can be changed reliably.
|
|
| 3. Mechanical system
The design of hopper and S valve and so on adopt Ｉ－DEAS software to
caculate, the hopper and S valve have good rigidity to avoid the
phenomenon of hopper distortion and S valve breakage.
|
4. Cooling system
The radiator equipment makes the working oil temperature of
hydraulic system below 70℃ and makes the machine in normal status.
|
|
Warranty:
The warranty will be one year from the date of shipment. Any
detected parts during this period caused by the quality of products
will be replaced by seller free of cost (exclude wear and tear
parts), improper operation and other manmade reasons are
excluded.and engineers available to service machinery overseas.
