    High Productivity Skip Hoist HZS50 Concrete Batch Mix Plant

    Ask Lasest Price
    Brand Name : ZHENHENG
    Model Number : HZS50
    Certification : SGS, ISO, BV, CE
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 30 sets per month
    Delivery Time : 7-15 working days after confirm order
    • Product Details
    • Company Profile

    High Productivity Skip Hoist HZS50 Concrete Batch Mix Plant

    HZS50 High Productivity Skip Hoist Concrete Batching Plant

    HZS50 High Productivity Skip Hoist Concrete Batching Plant which is used to produce plastic concrete, dry concrete and so on. Adopt twin horizontal shaft forced type concrete mixer or planetary mixer, it adopts two heavy-duty gearbox, electrical lubrication system, hydraulic system, durable mixing device, etc. Equipped with accurate weighing system (aggregate, cement, water, additive), PC+PLC control, vividly display the production process on the screen, so that the operator can monitor in real-time; save the data of production perimeters in the computer, print daily, monthly or yearly statistic reports of production. Because of its high efficiency, it is being widely used in big and medium scale construction projects, roads and bridges, and the factories to produce the pre-fabricated concrete component.


    Main Parameter Information of HZS50 High Productivity Skip Hoist Concrete Batching Plant


    ModelHZS50
    Productivity50m³/h
    Type of MixerJS1000
    Mixing Volume(L)1000
    Feeding WaySkip Hopper
    (Bucket Type)
    Discharge Height(m)3.8
    Aggregate Bins3/4
    Aggregate Weighing Range(kg)1000
    Cement Weighing Range(kg)600
    Max. Aggregate Size(mm)80/60
    Total Power(kw)64.8
    Total Weight(T)18

    Our advantages of HZS50 High Productivity Skip Hoist Concrete Batching Plant

    • High mixing intensity and even mixing
    • Using precision metering control system
    • Measurement is more accurate
    • Used coarse and fine measuring sensor.
    • Electrical components using France Schneider brand and China's first brand; the quality is more stable.
    • Pneumatic components use the Taiwan brand.

    1. Mixing system of HZS50 High Productivity Skip Hoist Concrete Batching Plant

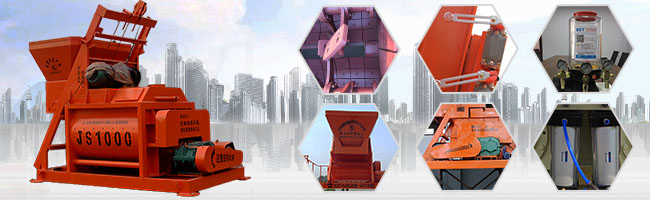

    Equipped with JS1000 twin-horizontal shaft concrete mixer; Discharging height is 3.8m. Pneumatic/Hydraulic control, easy replacing of wearing parts, such as liner plates.

    2. Cement silo of
    HZS50 High Productivity Skip Hoist Concrete Batching Plant


    The capacity of 50t, 100t, 150t, 200t, etc is optional, and we can customize your requirements. Bolted type, modular making with dust collector, broken arch, pressure relief valve, level gauge. Butterfly valve.

    3. Weighing system of
    HZS50 High Productivity Skip Hoist Concrete Batching Plant
    The weighing system includes aggregate weighing, water weighing, cement weighing and additive weighing(optional). It is controlled by microcomputer, the weighing is highly accurate and fully automatic.
    Using a sensor with good quality, the tolerance of the weighing accuracy low to ± 1%. Or lower as customer's requirements.

    4. Aggregate lifting hopper of
    HZS50 High Productivity Skip Hoist Concrete Batching Plant
    Using a new design lifting hopper to feed aggregates to JS1000 concrete mixer, which will make sure high stability and cost-effective.

    5. Full-automatic control system of
    HZS50 High Productivity Skip Hoist Concrete Batching Plant
    Full-automatic PLC/Centralized control with the emergency stop button and safety control key. TV monitoring systems for batching machine, concrete mixer, and discharging mouth are optional for clients.

    6. Aggregate batching machine of
    HZS50 High Productivity Skip Hoist Concrete Batching Plant
    Customization 3/4 hoppers with belt conveyor, pneumatic discharging mode with independent/cumulative weighting.



    FAQ of HZS50 High Productivity Skip Hoist Concrete Batching Plant


    Q: Can we visit your factory?
    Yes. You can visit our factory at anytime you want.

    Q: Can you put our logo on the machine?
    Yes,it is available.LOGO and color are usually as per customer's requirement.

    Q: What’s the warranty time?
    From the date of shipment, 1 year or 1500working hours, whichever comes first.

    Q: What’s your payment term?
    We accept T/T(30% down payment and balance before shipping) and L/C mostly, but if you prefer other payment terms please contact us for further information.

    Q: How long is your delivery time?
    Usually, it is 7-10 workdays if the goods are in stock, or it is 15-20 working days if the goods are not in stock, it is according to quantity.

    Q: Can we paint our label on your product?
    Of course. OEM and ODM are acceptable, please send us your logo or brand, we’ll paint for you.
